NVMFS5C468NLAFT1G MOSFET Power Electronics Single N-Channel 40 V 10.3 m 37 A Package 5-DFN

Product Categories

Shenzhen Sai Collie Technology Co., Ltd.

Contact Now

Name: NVMFS5C468NLAFT1G MOSFET Power Electronics Single NChannel 40 V 103 m 37 A Package 5DFN
Brand: onsemi
Price: 1 USD

Brand Name : onsemi

Model Number : NVMFS5C468NLAFT1G

Place of Origin : original

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 999999

Delivery Time : 1-3 days

Packaging Details : standard

Drain to Source Voltage (Vdss) : 40 V

Current - Continuous Drain (Id) @ 25°C : 13A (Ta), 37A (Tc)

Drive VoDrive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V

Rds On (Max) @ Id, Vgs : 10.3mOhm @ 20A, 10V

Vgs(th) (Max) @ Id : 2V @ 250µA

Vgs (Max) : ±20V

Contact Now

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Shenzhen Sai Collie Technology Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	13A (Ta), 37A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	10.3mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	7.3 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	570 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	3.5W (Ta), 28W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	5-DFN (5x6) (8-SOFL)
Package / Case	8-PowerTDFN, 5 Leads

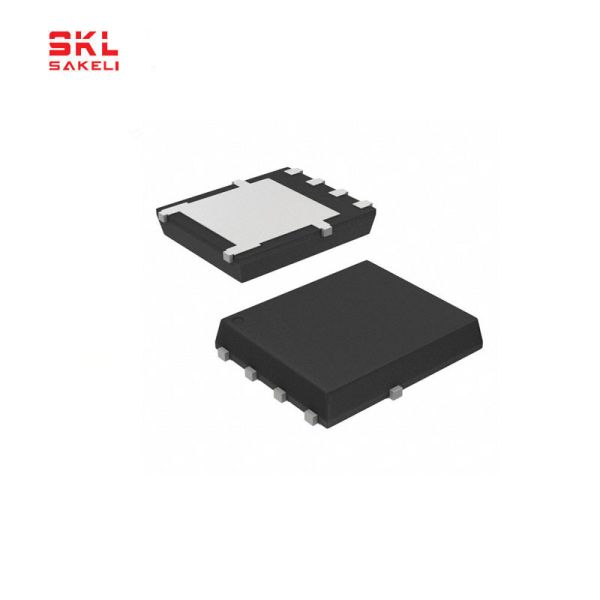

NVMFS5C468NLAFT1G MOSFET Power Electronics Single N-Channel 40 V 10.3 m 37 A Package 5-DFN Images
